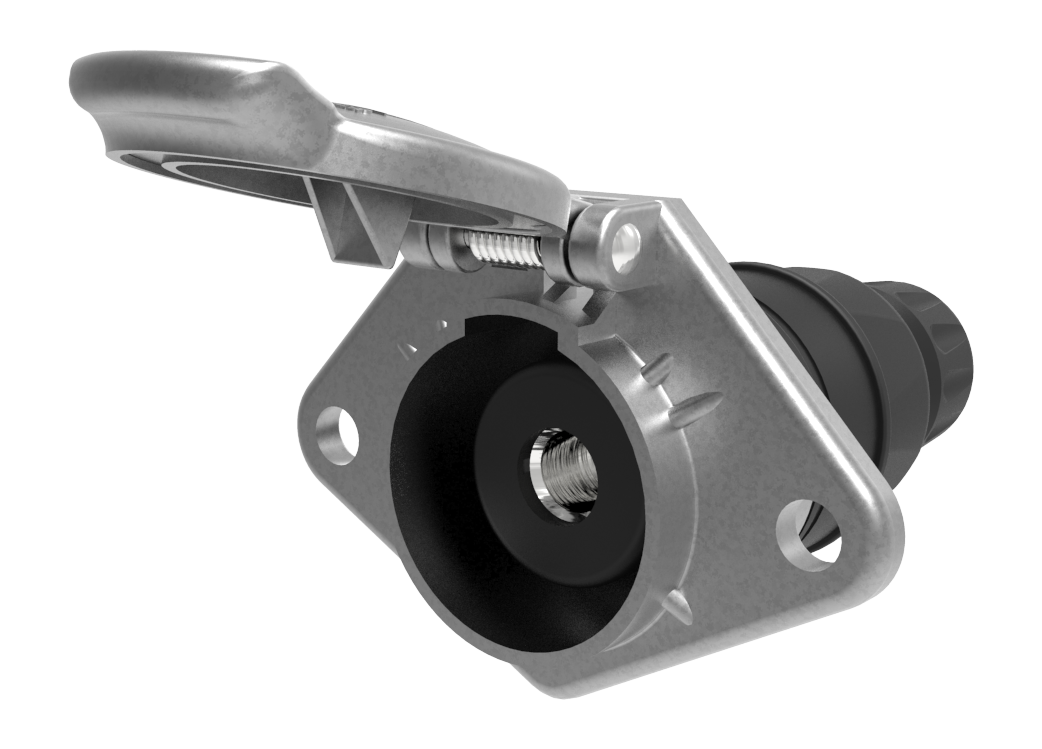

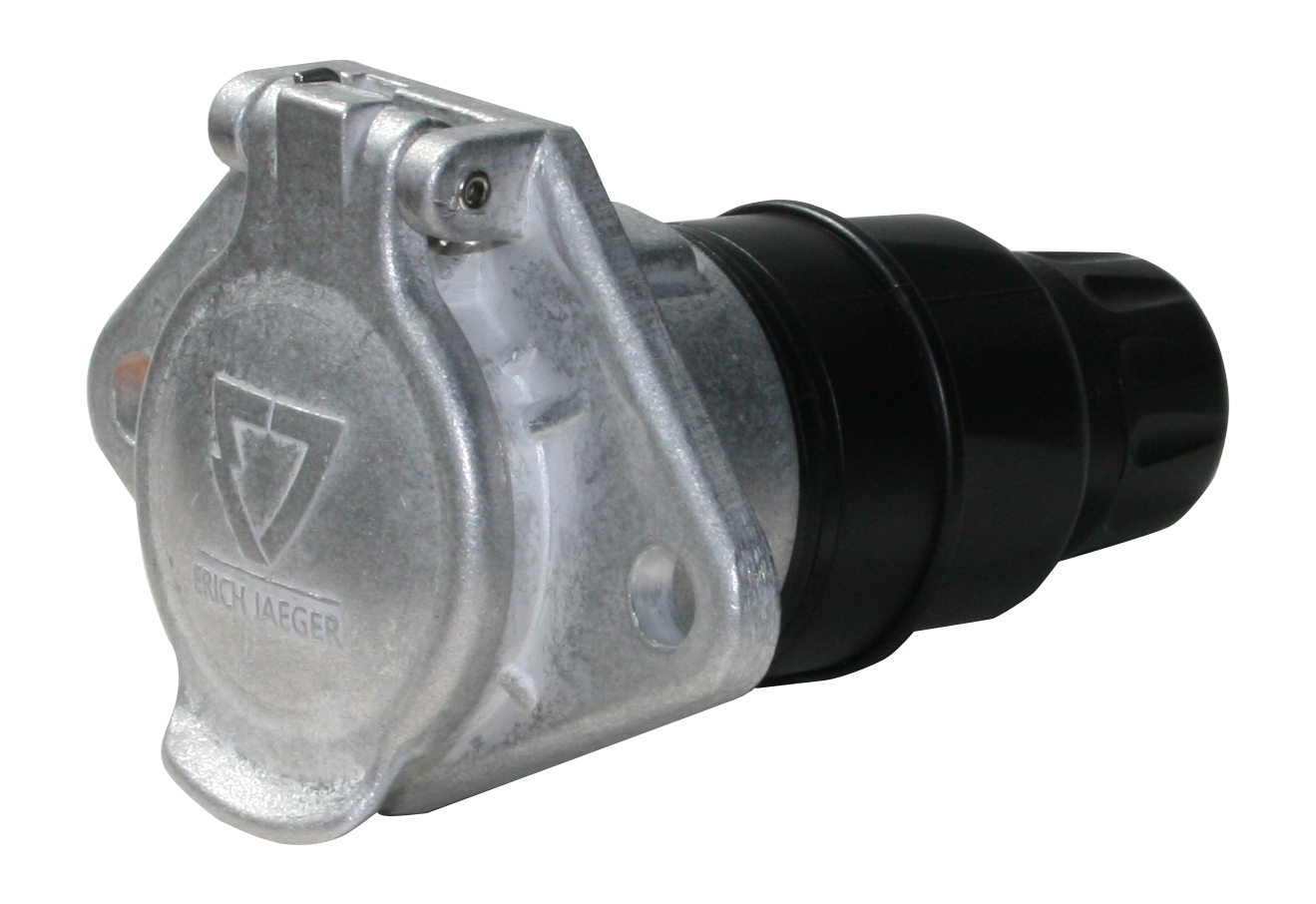

1P/24V(300A) (black, ground) Socket (without standard)

Article Number151290

Make request

Product information

Name 1P/24V(300A) (black, ground) Socket (without standard)
Article Number 151290
Categories Socket
Standards without standard
Industries Commercial vehicles , Agriculture
Rated current / permanent load [in A] 300
Voltage [in V] 24
Branding ERICH JAEGER
Type of seal screw cap
Product supplement (black, ground)
Contact surface silver (Ag)
Cover material proof metal
Housing color silver-colored
Housing material break-proof metal
Cable outlet cap nut
Contact termination crimp contact
Contact version contact sleeve
No. of poles 01
Contact: for max. wire cross section [in mm²] 35,00
For cable diameter 11,00mm - 14,00mm
